Inheritance diagram for z::AsciiWindow:

[legend]

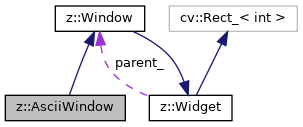

Collaboration diagram for z::AsciiWindow:

[legend]

Public Member Functions
	AsciiWindow (const char *asciiart, int unit_width=10, int unit_height=15, int margin=1)

void	title (std::string t)

Public Member Functions inherited from z::Window
	Window (std::string title, cv::Rect_< int > r)

void	show ()
	draw mat_ More...

void	popup (Window &w, std::function< void(int)> f=[](int){})

void	popdown (int value)

std::string	type () const

int	open (int flag=cv::WINDOW_AUTOSIZE, int x=-1, int y=-1)

void	quit (int r)

void	focus (bool v)

Window &	operator+ (Widget &w)

Window &	operator- (Widget &w)

Window &	operator<< (Widget &r)

Window &	operator>> (Widget &r)

int	loop ()

std::vector< Widget * >::iterator	begin ()

std::vector< Widget * >::iterator	end ()

void	close ()

void	start (int flag=cv::WINDOW_AUTOSIZE\|cv::WINDOW_KEEPRATIO)

void	keyboard_callback (int key, int level=0)

std::string	title () const

void	tie (TextInput &t, Button &b, const std::vector< std::string > &v, int font_size)

template<class T >
auto	tie (TextInput &t, Button &b1, Button &b2, T start, T step)

template<class... T>
void	tabs (int xpos, int ypos, T &... wins)

void	organize_accordingto_zindex ()

void	move_widget (Widget &w, cv::Point2i p)

void	on_register ()
	will be called when widget is added to a window

bool	is_window () const

template<class... T>
auto	tie (T &... checks)

template<class... T>
void	wrap (const char *title, int font, int N, const T &... widgets)

void	draw_all_wrapped ()

void	scroll_to (cv::Rect2i r)

void	set_ul (cv::Point2i p)

void	set_br (cv::Point2i p)

Public Member Functions inherited from z::Widget
	Widget (cv::Rect_< int > r)

Widget &	operator= (const Widget &r)

bool	focus () const

virtual void	event_callback (int event, int x, int y)

void	resize (cv::Rect2i r)

void	update ()

int	zIndex ()

void	zIndex (int v)

void	hidden (bool v)

void	activated (bool v)

bool	hidden () const

bool	activated () const

void	hide ()

float	alpha () const

void	alpha (float f)

void	shade_rect (cv::Rect2i r, int shade=3, cv::Vec3b color=widget_color_, cv::Vec3b upper_left=highlight_color_, cv::Vec3b lower_right=click_color_)

Protected Attributes
std::vector< std::shared_ptr< Slider > >	S

std::vector< std::shared_ptr< Button > >	B

std::vector< std::shared_ptr< TextInput > >	T

std::vector< std::shared_ptr< CheckBox > >	C

std::vector< std::shared_ptr< Label > >	L

std::vector< std::shared_ptr< Image > >	I

std::vector< std::shared_ptr< Progress > >	P

std::vector< std::shared_ptr< Widget > >	Z

std::vector< std::shared_ptr< TextBox > >	E

Protected Attributes inherited from z::Window
std::string	title_

bool	closed_ = false

int	result_ = -1

Protected Attributes inherited from z::Widget
float	alpha_ = 1
	alpha value of widget. Widgets can be overlapped. Alpha value will be calculated in such cases.

bool	hidden_ = false
	if hidden, a widget will not show on window, but still can react to event.

bool	activated_ = true
	deactivated widget cannot get focus so that it cannot react to events.

bool	focus_ = false

int	zIndex_ = 0
	higher zIndex widget will be in front of lower zIndex widget.

Additional Inherited Members
Public Attributes inherited from z::Window
cv::Rect2i	scrolled_rect_ = cv::Rect2i{0,0,0,0}

std::vector< Widget * >	widgets_

std::vector< Widget * >	backup_

Public Attributes inherited from z::Widget
std::map< int, std::function< void(int, int)> >	gui_callback_
	map<int : event, function(x, y)>. library will draw change in widget graphics after gui_callback

std::map< int, std::function< void(int, int)> >	user_callback_

cv::Mat3b	mat_
	Matrix that contains widget shape.

Window *	parent_ = nullptr
	pointer to parent window that is containing this widget

Protected Member Functions inherited from z::Window
void	draw_wrapped (const Wrapped &wr)

Static Protected Attributes inherited from z::Widget
static const cv::Vec3b	background_color_ = {200, 200, 200}

static const cv::Vec3b	widget_color_ = {220, 220, 220}

static const cv::Vec3b	highlight_color_ = {240, 240, 240}

static const cv::Vec3b	click_color_ = {180, 180, 180}

static cv::Ptr< cv::freetype::FreeType2 >	ft2_
	freetype2 font. CJK font needed

Constructor & Destructor Documentation

◆ AsciiWindow()

z::AsciiWindow::AsciiWindow	(	const char *	asciiart,
		int	unit_width = `10`,
		int	unit_height = `15`,
		int	margin = `1`
	)

Parameters

p	compose GUI with ascii art, never use tab.
unit_width	width in pixel that one ascii art character will occupy. If you want to make a bigger widget increase this.
unit_height	height in pixel that one ascii art character will occupy
margin	margin space around window

The documentation for this class was generated from the following files:

/home/zeta/Programming/opencv-gui/src/zgui.h
/home/zeta/Programming/opencv-gui/src/asciiwindow.cc
